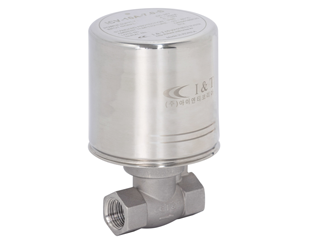

| Model |
ICV-10A-3.2-S |
ICV-10A-5.0-S |
ICV-10A-7.0-S |
| Orifice Diameter |
Ø3.2 |
Ø5.0 |
Ø7.0 |
| Flow Limit (Water at 0.4 Mpa Δp) |
8.8 LPM |
16.2 LPM |
21.4LPM |
| 2.3 GPM |
4.3 GPM |
5.7GPM |
| Maximun Cv value |
0.31 |
0.57 |
0.75 |
| Valve type |
Needle valve |
| Connection size |
PT 3/8" |
| Flow path |
180° Flow |
| Fluid types |
Water, Galden®, FluorinertTM, Air, Gas |
| Fluid Temperature |
-20 ~ 90℃ |
| Ambient Environment |
-20 ~ 60℃ |
| Maximum Operation Pressure Differential(MOPD) |
1.0 Mpa |
| Maximum Operating Pressure |
1.5 Mpa |
| Power Source |
24 VDC |
| motor Power |
24 VDC |
| motor Rated Current |
0.4A |
| Input Signal |
4~20 mA / 0~10 VDC |
| Valve Driver Boared |
HCD Series |
| Drive System |
DC stepper motor |
| Resolution of Valve Movement |
1000 steps |
| Response Time (0 to 100% Open) |
3 seconds |
| Water and Dust Proofing |
IP65 |
| Material |
304 Stainless Steel, PTFE, Viton |
| Weight |
858 g |
860g |
862g |
